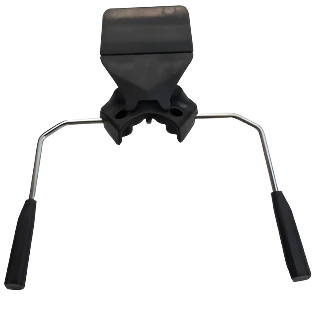

Brakes for HAGAN Core 12 EVO & Pin Up 8/10 EVO bindings

The EVO system ski brakes on the HAGAN Core 12 EVO and Pin Up 8/10 bindings are heel mounted. They are held in retracted position by a catch mechanism, not by the heel tower itself. This means the heel tower doesn't need to be built to hold down the brake, is lighter, and turns more freely without impact on the lateral release. To retract the brakes, just twist the heel to climbing position and step down. The brakes never need to be touched by your hands.

They are easily installed via 2 Torx 10 screws.

INTEGRATED REAR-BRAKE SYSTEM ®

6 sizes: 86, 91, 97, 102, 108 and 120 mm

Injection-molded POM thermo-plastic

Stainless steel

Also work with ATK Raider 11 and Raider 13 Evo and FreeRaider 15 Evo bindings.

Sold in sets of two.

Spare/replacement brakes do not come with the catch hook, Torx 10 screws and springs. Save and use them from your current brakes.
